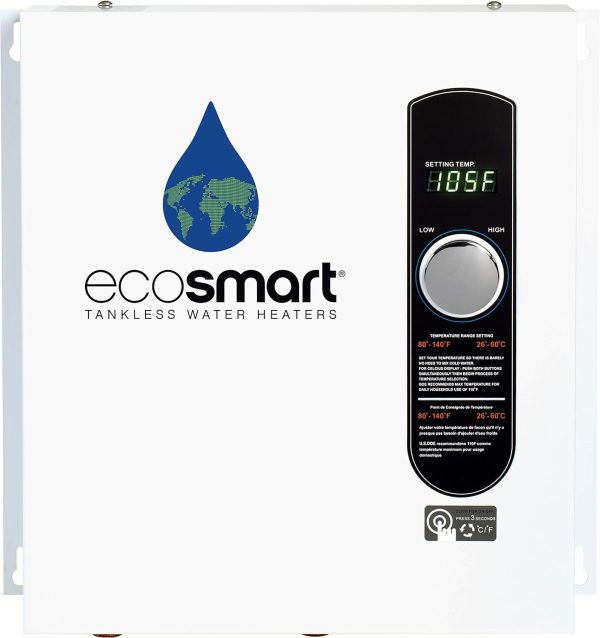

EcoSmart ECO 27 Tankless Water Heater, Electric, 27-kW – Quantity 1, 17 x 17 x 3.5

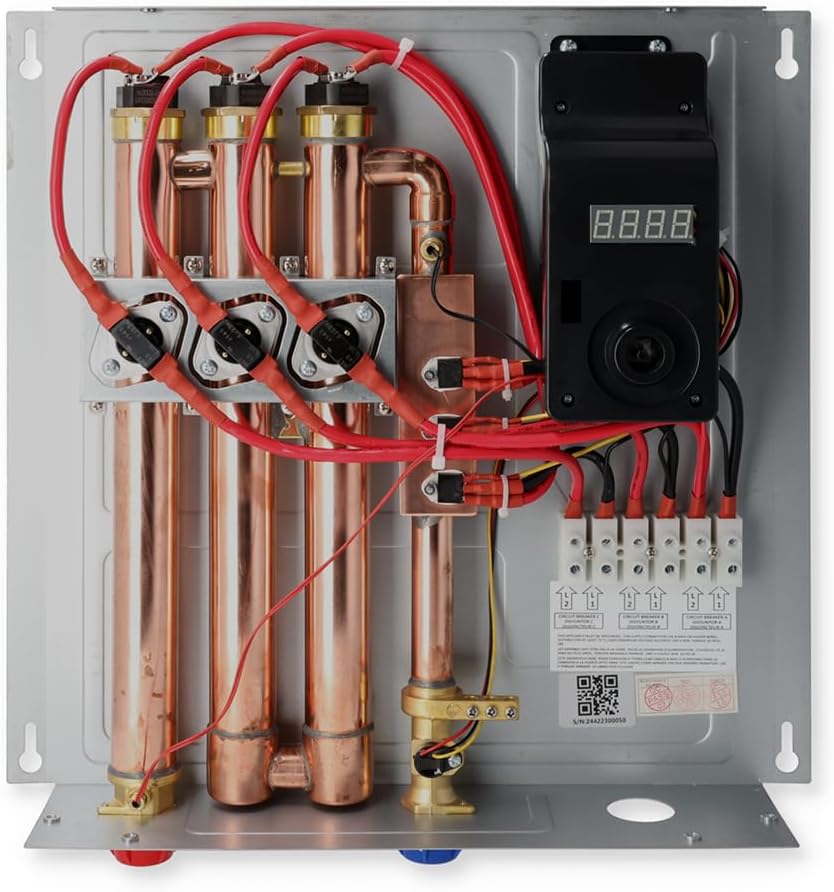

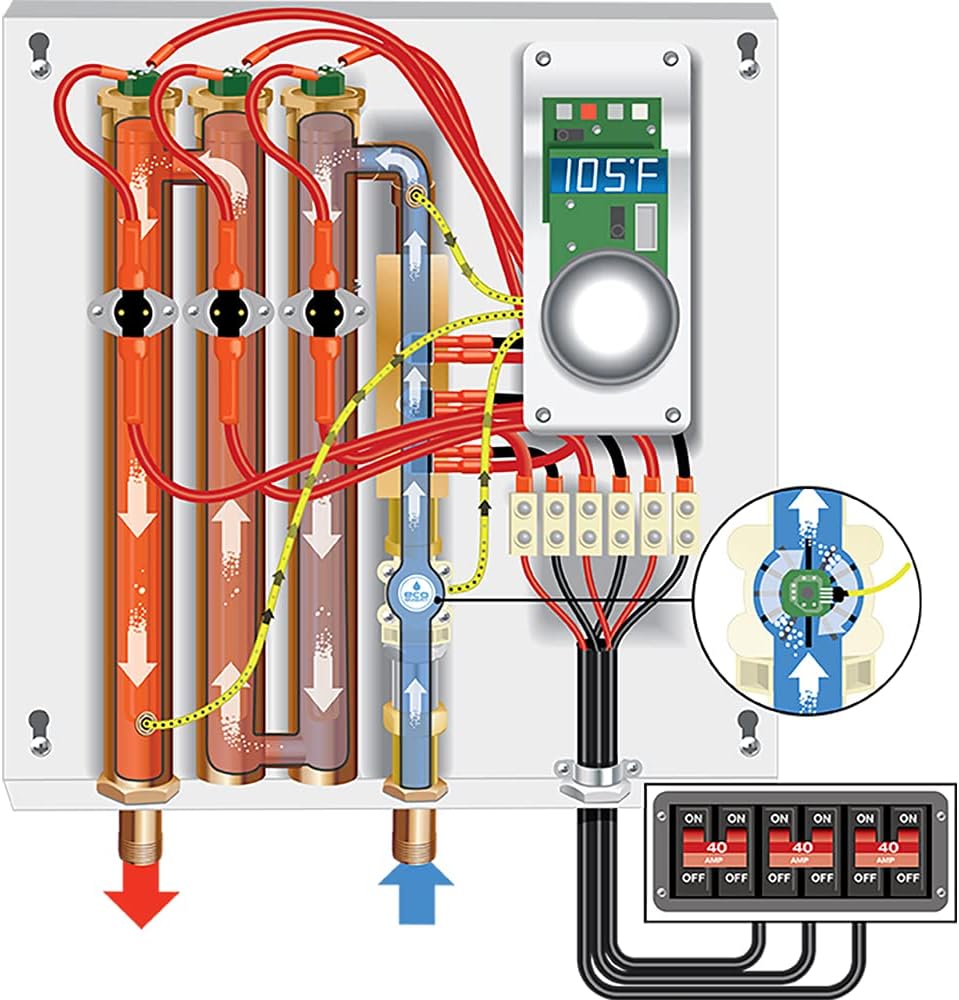

Configured for cold climates or high flow rates. Well suited where incoming water temperature can drop below 45 F. For use in more demanding water usage applications. Self modulating flow sensor technology regulates the amount of energy required to heat the water needed. Digital temperature display showing the outlet water temperature setting. Uses (3) 9 KW standard Emerson electric heating elements with brass tops to prevent electrolysis. Copper heat exchanger. Automatic resettable thermostat. (3) 40 DP breakers required. 112A draw. Required wire: 3 sets 8 AWG. Pipe fitting: 3/4” NPT. Energy efficiency: 99.8%. UL and CSA certified.Weight: 11 lb. It can provide between 2.7 and 6.5 gallons-per-minute depending on the inlet water temperature.
- Endless on-Demand Hot Water; Consistent hot water when you need it that never runs out; Continuously monitored water temperature and controlled flow rates ensure efficiency and consistent performance within 1 degree of selected temperature

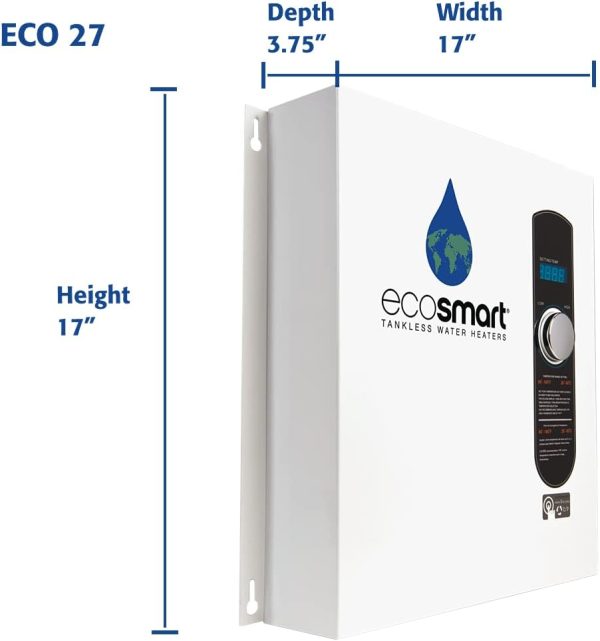

- Save Space; EcoSmart tankless electric water heaters are 90% smaller than traditional tank heaters; may be installed on wall or at point of use; Dimensions 17 x 17 x 3.75 inches
- Save Energy; EcoSmart tankless electric water heaters are 99% thermal energy efficient; Only heats water when called unlike a tank heater that maintains water temperature even when not being used. Save up to 50% in water heating costs according to the Department of Energy

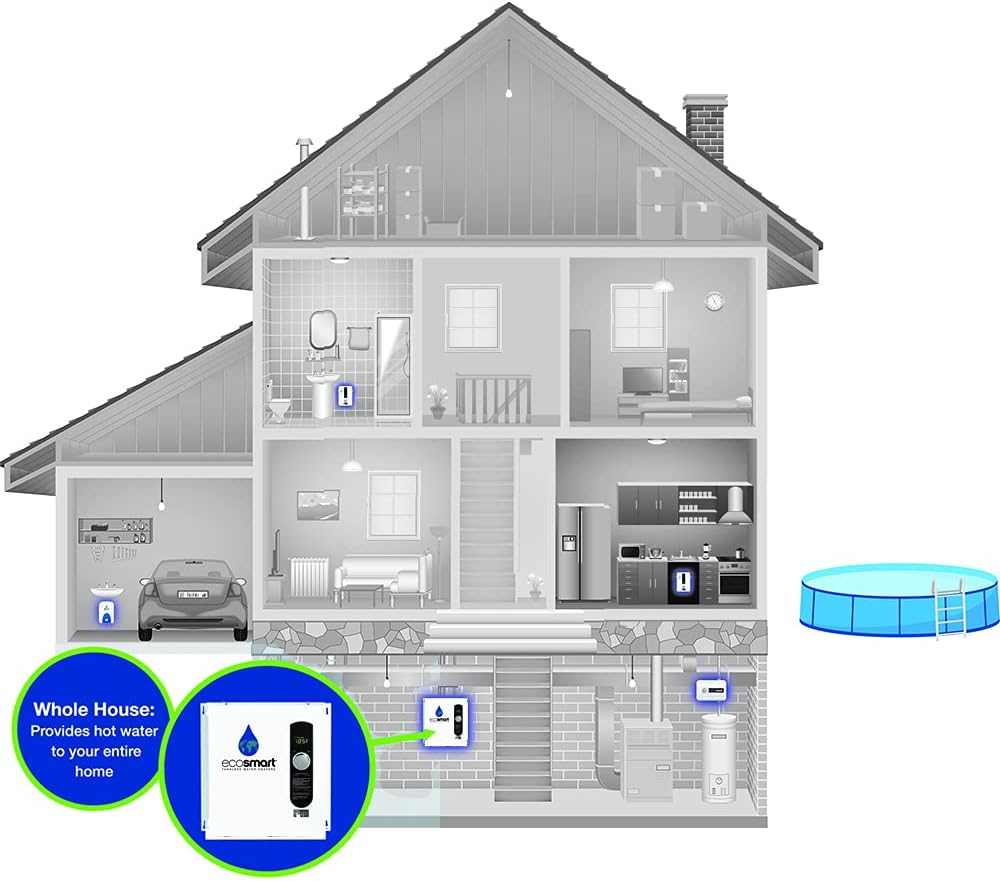

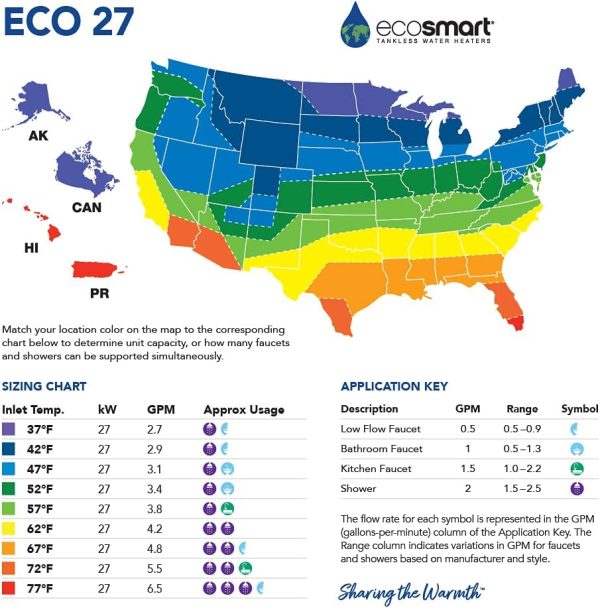

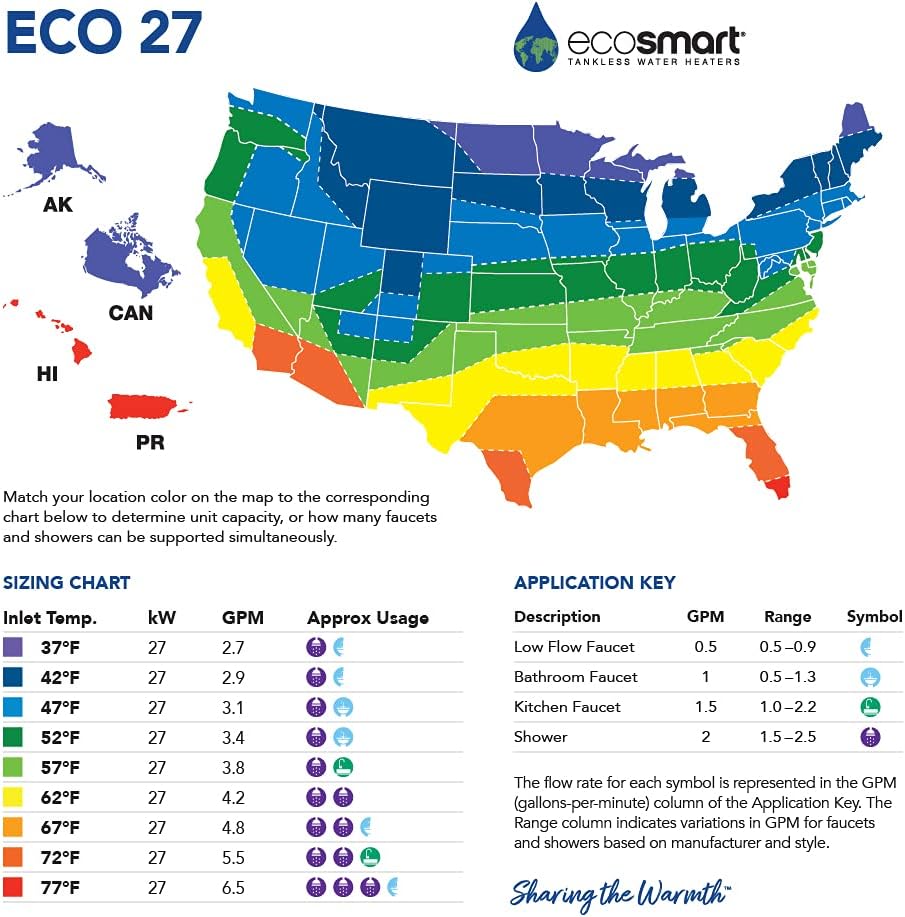

- EcoSmart ECO 27 Sizing; Refer to the sizing map. Requires 3×40 AMP Double Pole Breaker, 27-kilowatt tankless electric water heater ideal for providing hot water for whole home applications; provides between 2.7 and 6.5 gallons-per-minute depending on the inlet water temperature; refer to the sizing guide to select the proper solution
- Warranty and Certifications; Limited Lifetime Warranty on electronics, exchanger and element; UL-499 certified; ETL Listed

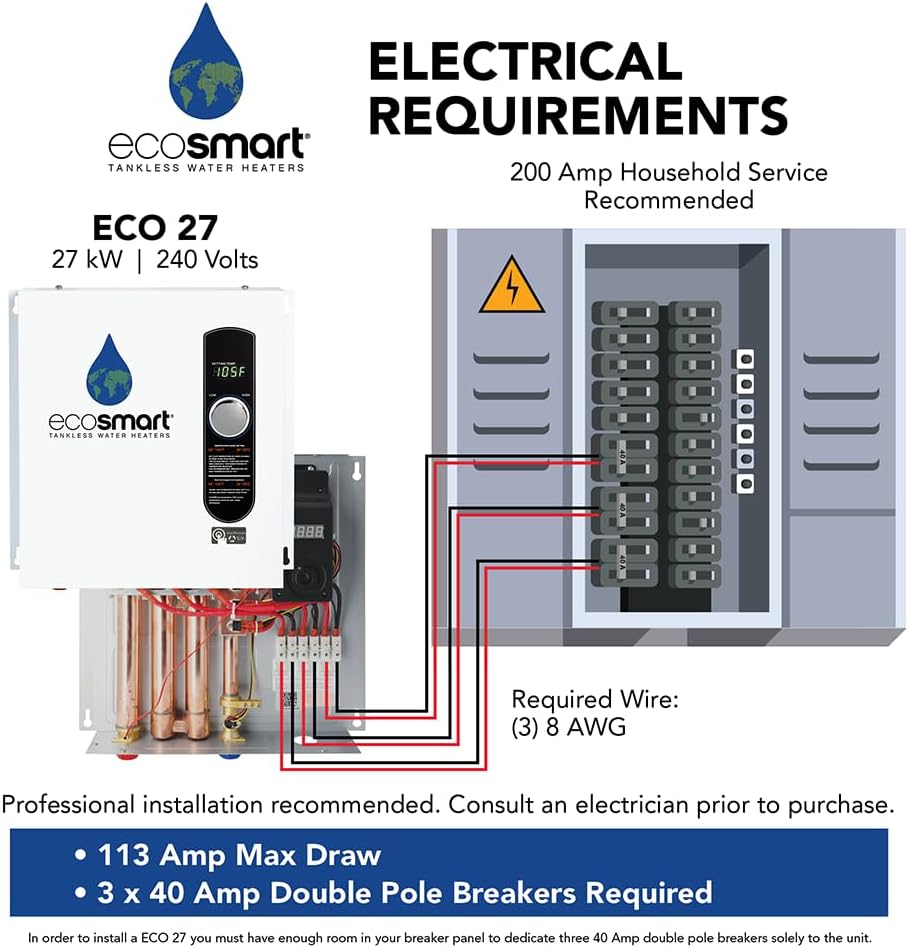

- Required Breaker Quantity: Three 40 Amp Double Pole
- Recommended Electrical Panel: 200 Amps
- NEVER run out of hot water with an ECOSMART tankless water heater.
- Save up to 12 cubic feet of storage space.

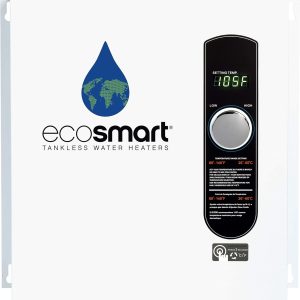

- Digital temperature control in 1-degree increments gives users complete control of hot water
Product information
Technical Details
| Brand | EcoSmart |
|---|---|
| Capacity | 3 Gallons |
| Power Source | 3 x 40 AMP Double Pole Breaker (Electric) |
| Product Dimensions | 17″W x 17″H |
| Special Feature | LED Display |
| Color | White |
| Wattage | 27 KW |
| Voltage | 240 Volts |
| Material | Plastic |
| Item Weight | 4.99 Kilograms |
| Maximum Flow Rate | 6.6 Gallons Per Minute |
| Maximum Temperature | 120 Degrees Fahrenheit |
| Heat Output | 27 Kilowatts |
| Style | ECO 27 |
| Maximum Pressure | 150 Pound per Square Inch |
| Mounting Type | Wall |
| Manufacturer | Ecosmart |
| Part Number | ECO27 |
| Item Weight | 10.98 pounds |
| Country of Origin | China |
| Item model number | ECO 27 |
| Is Discontinued By Manufacturer | No |
| Size | 17 x 17 x 3.5 |
| Pattern | Water Heater |
| Shape | Rectangle |
| Item Package Quantity | 1 |
| Special Features | LED Display |
| Included Components | electric tankless water heater |
| Batteries Included? | No |
| Batteries Required? | No |
| Warranty Description | Limited Lifetime Warranty on electronics, exchanger and element. Warranty only covers cost of heater; does not cover labor or any incidental damages. Proper and timely registration is required, or warranty is void. |
