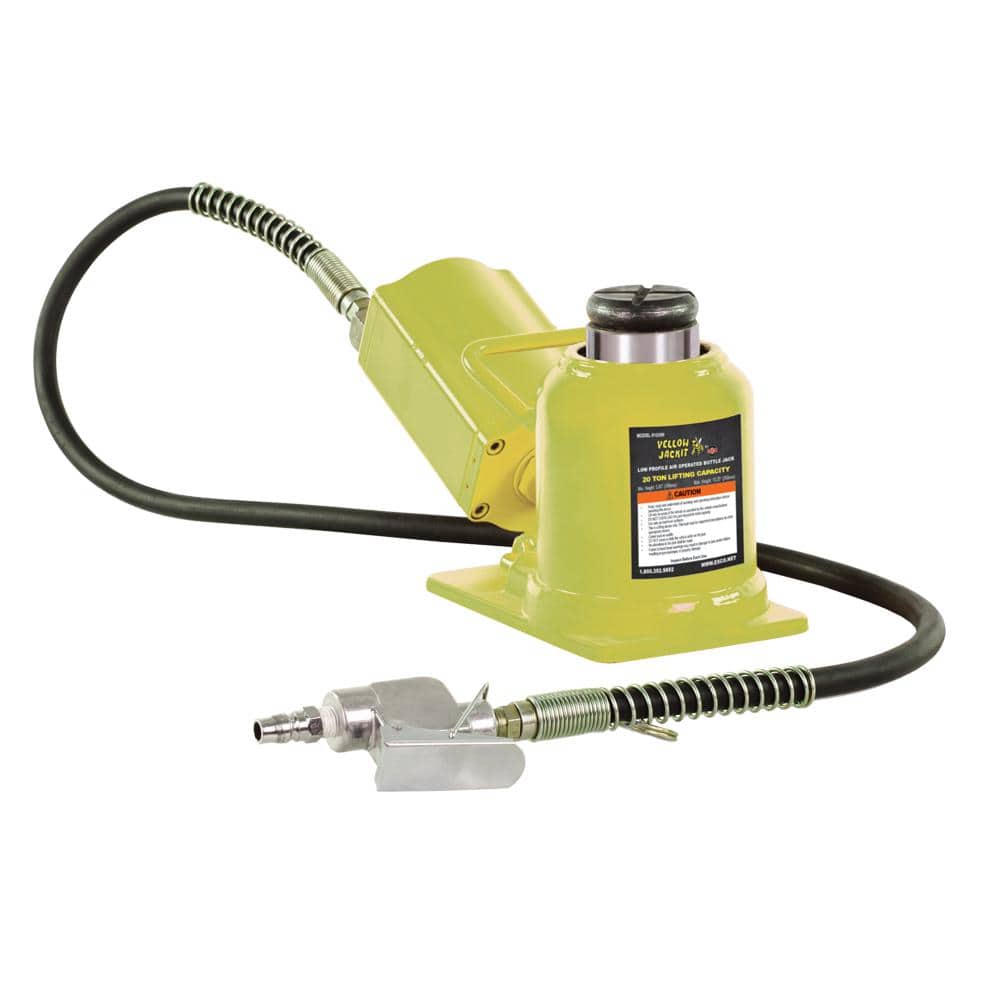

ESCO 10399 20-Ton Low Profile Air Hydraulic Bottle Jack
The ESCO 20 Ton Air/Hydraulic Shorty Bottle Jack (Model 10399) works to lift loads up to 40,000 lbs. Designed to meet ANSI/CE standards. The jack is operated by air or can be controlled manually with included bar. This unit features a welded base and cylinder providing exceptional strength and stability. Low height design for low profile applications.
- Shorter bottle jack for low profile applications

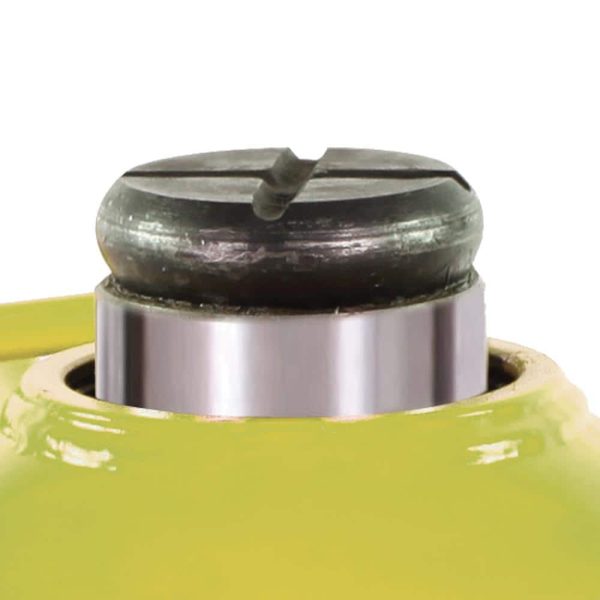

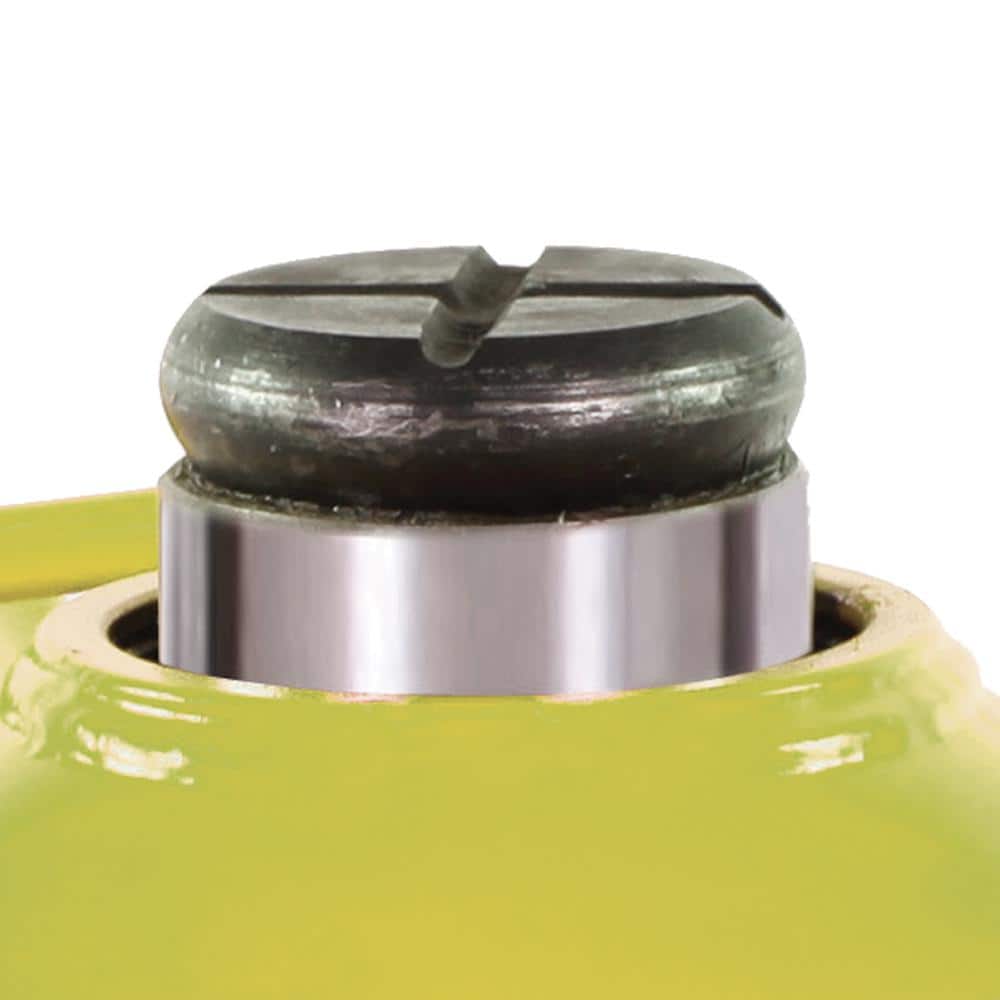

- Chrome piston for added rust resistance
- Heat treated extension saddle screw gives 2 in. added height when necessary
- Minimum height 5.8 in.
- Maximum height 10.25 in.
- 4.5 ft. air hose with built-in trigger
- Air pressure 100-145 psi
Dimensions
| Base Length (in.) | 7 | Base Width (in.) | 4.5 |
|---|---|---|---|
| Collapsed height (in.) | 5.8 | Handle Length (in.) | 0 |
| Product Depth (in.) | 14 | Product Height (in.) | 14 |
| Product Width (in.) | 6 |
Details
| Features | No Additional Features | General Part Type | Bottle Jack |
|---|---|---|---|
| Included | Adjustable Saddle, Handle, Hardware, Hoses, Hydraulic Jacks | Material | Steel |
| Maximum Lift Height (in.) | 11 | Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 11 | Product Weight (lb.) | 21 |
| Saddle Diameter (in.) | 2 | ||
| Weight Capacity (lb.) | 40000 |
Warranty / Certifications
| Manufacturer Warranty | 1 year warranty |
|---|
Reviews
There are no reviews yet.
