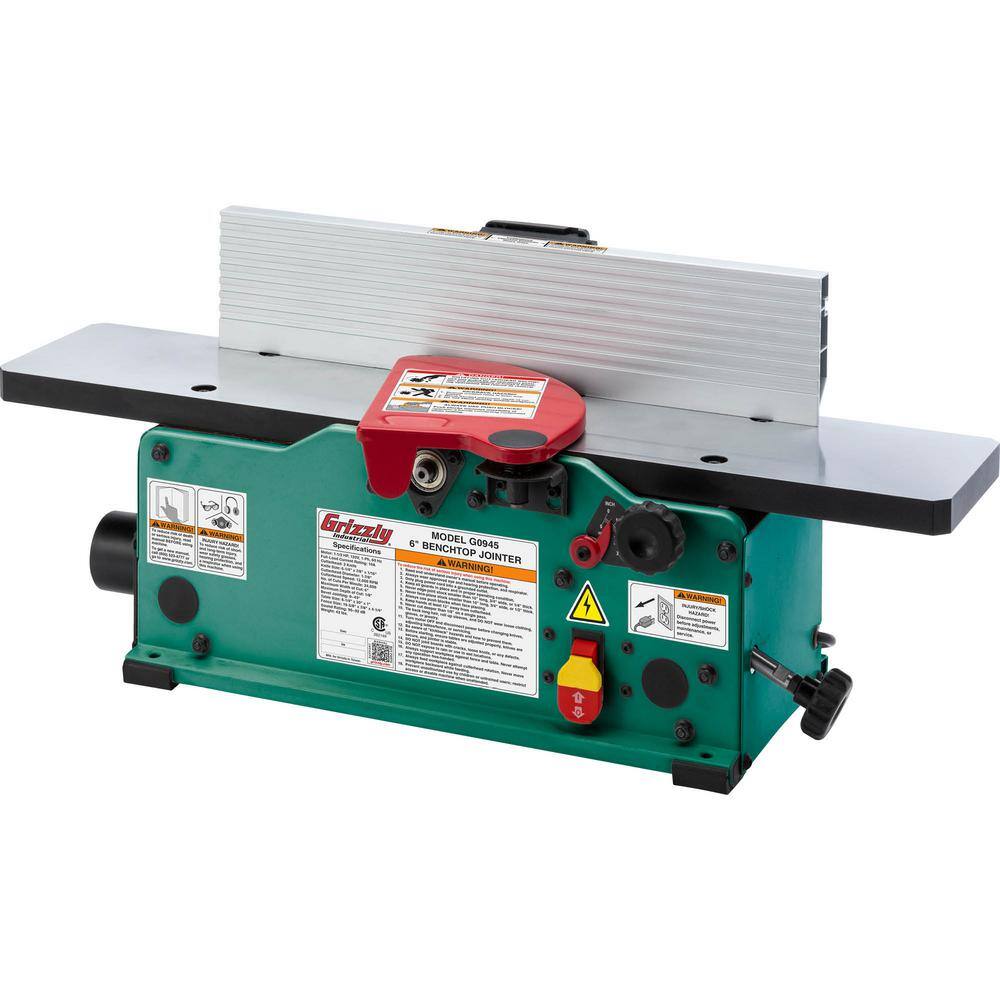

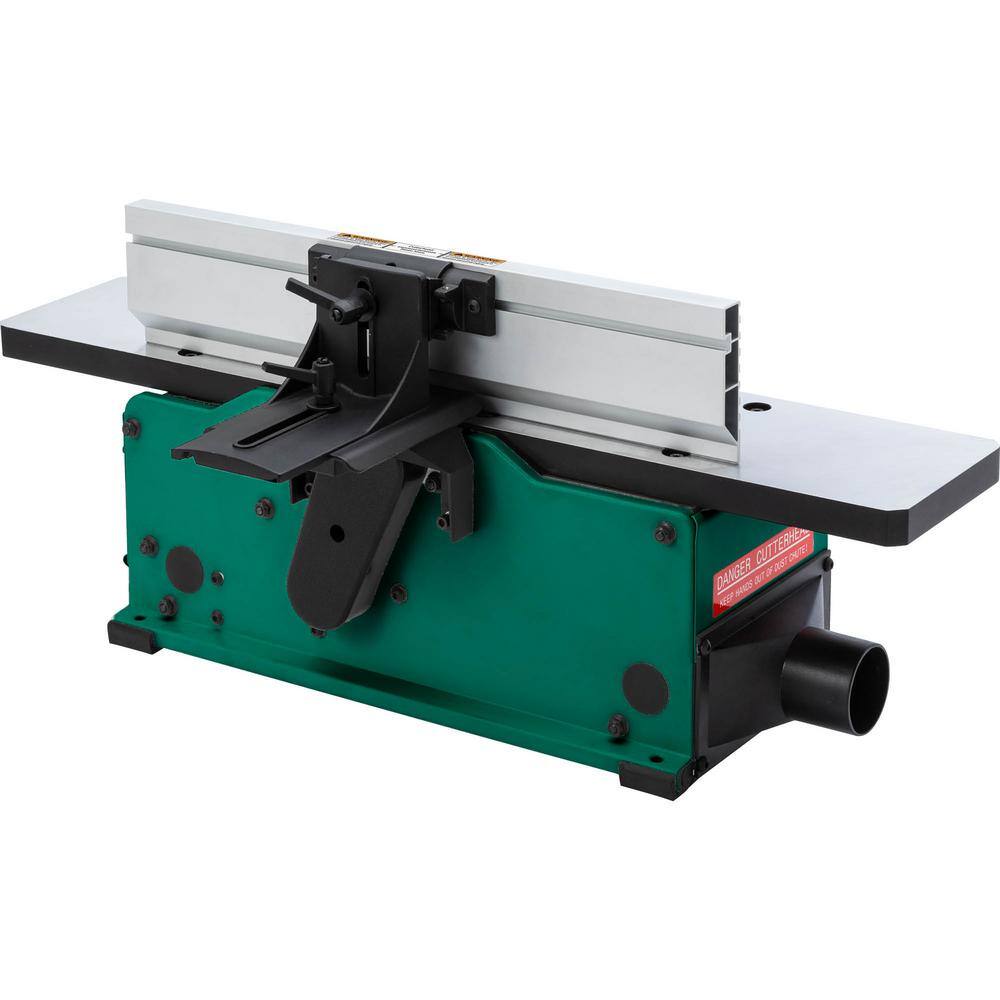

Grizzly Industrial G0945 6 in. Benchtop Jointer

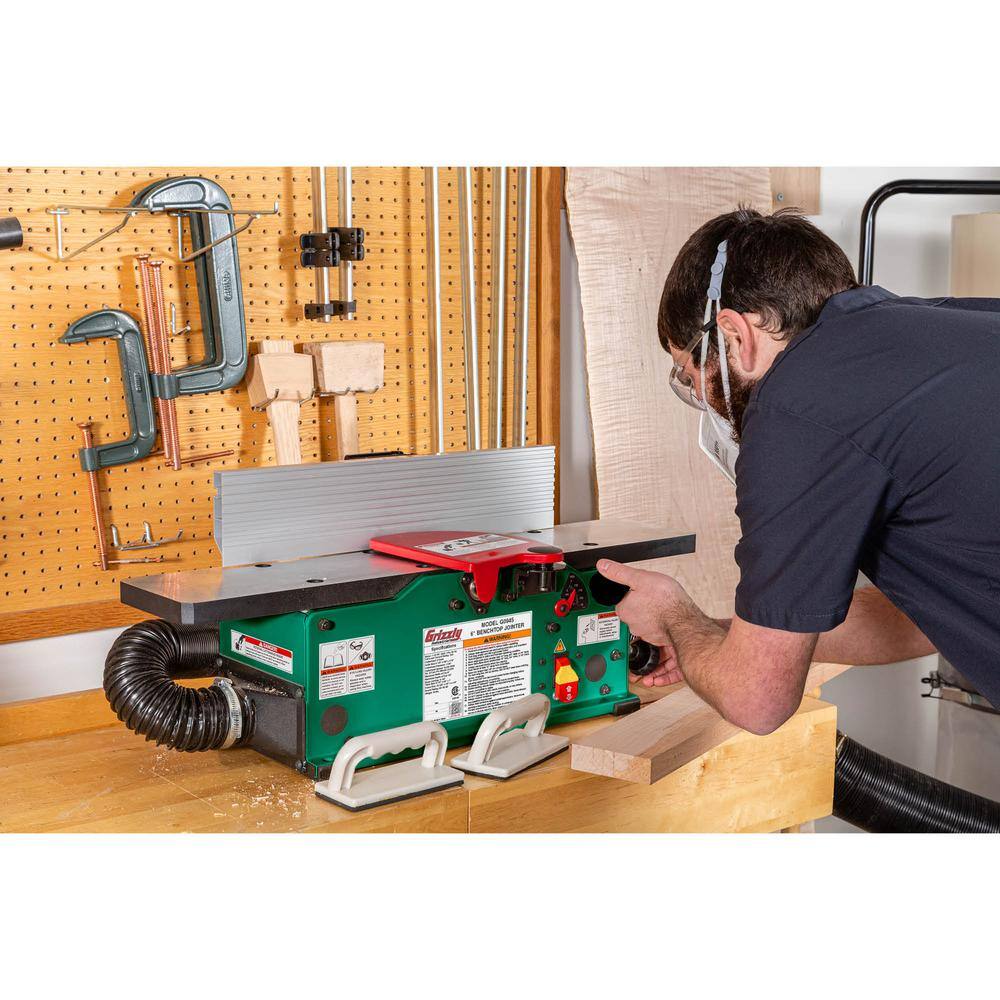

The G0945 6 in. Benchtop Jointer has a compact size for convenient placement in any shop. It mounts and dismounts quickly to a workbench making it portable when necessary. It is used to produce straight, flat edges on a workpiece, in order to properly square material for further layout, construction, and jointing. The 1-7/8 in. diameter straight-knife cutterhead has two SK5 steel knives to produce a smooth jointing finish. The fence is constructed from extruded aluminum, making for a truly portable benchtop jointer. Easily stow away when not in use and quickly set-up when ready to use. The infeed and outfeed tables are constructed from cast aluminum. The depth-of-cut adjustment knob adjusts height of infeed table, controlling depth of cut. The infeed table height adjustment lock secures that height. Made in an ISO 9001 factoryCSA certifiedSPECIFICATIONS:Motor: 1-1/2 HP, 120V, single-phase, 10AMaximum width of cut: 6 in. Maximum depth of cut: 1/8 in. Minimum workpiece length: 10 in. Minimum stock thickness: 1/2 in. Number of cuts per minute: 24,000Cutterhead diameter: 1-7/8 in. Cutterhead type: 2-Row straight-knifeCutterhead speed: 11,000 RPMKnife type: SK5 steel, single-sidedKnife size: 6-1/4 in. L x 7/8 in. W x 1/16 in. TTable size: 6-1/4 in. x 30 in. Fence size: 19-3/4 in. L x 4-5/16 in. HDust port size: 2-1/2 in. Footprint: 9-1/2 in. x 19-1/2 in. Overall dimensions: 30 in. W x 17-1/2 in. D x 13 in. HApprox. shipping weight: 44 lbs.
- Straight-knife cutterhead with two SK5 steel knives
- Cast aluminum infeed and outfeed tables
- Infeed table height adjustment lock
- Built-in dust collection system with 2-1/2 in. dust port

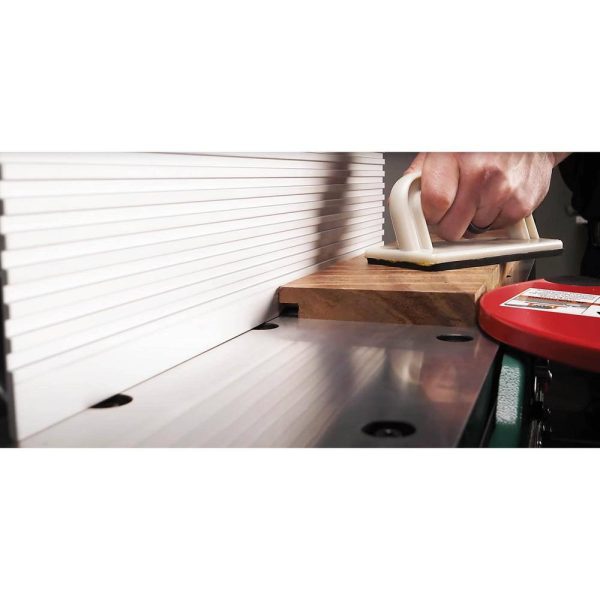

- 2 push blocks included
Dimensions
| Product Depth (in.) | 17.5 in | Product Height (in.) | 13 in |
|---|---|---|---|
| Product Width (in.) | 30 in | Work Table Length (in.) | 30 in |
| Work Table Width (in.) | 6.25 in |
Details
| Amperage (A) | 10 A | Bench & Stationary Tool Type | Jointer |
|---|---|---|---|
| Color Family | Multi-Colored | Condition | New |
| Cutterhead Type | Straight Knife | Horsepower (HP) | 1.5 hp |
| Included | No Additional Items Included | Maximum Board Width (In.) | 6 in |
| Maximum Speed (RPM) | 11000 RPM | Portability | Bench |
| Power Tool Features | No Additional Features | Product Weight (lb.) | 43 lb |
| Tools Product Type | Power Tool |
