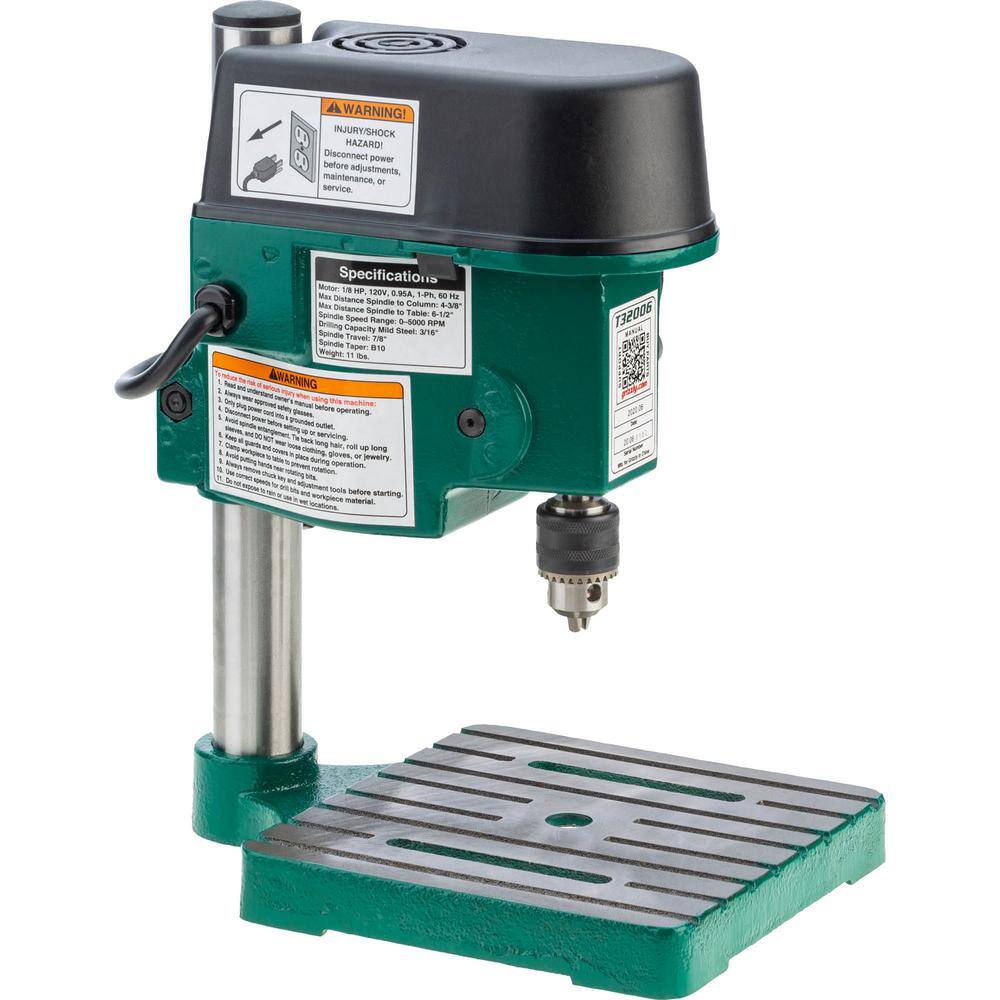

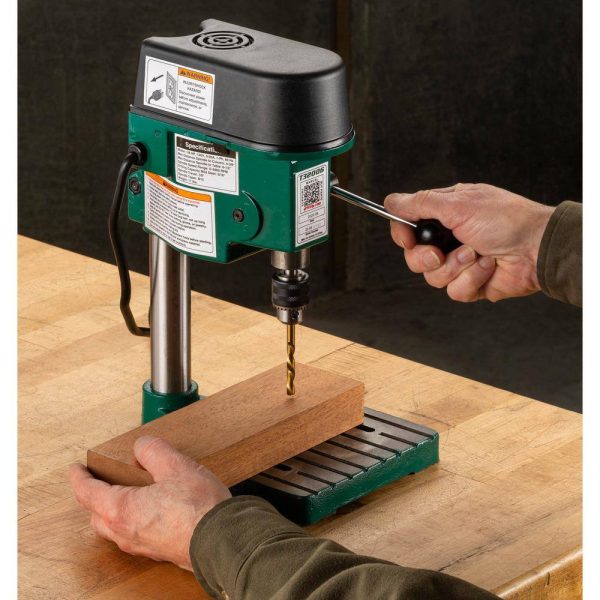

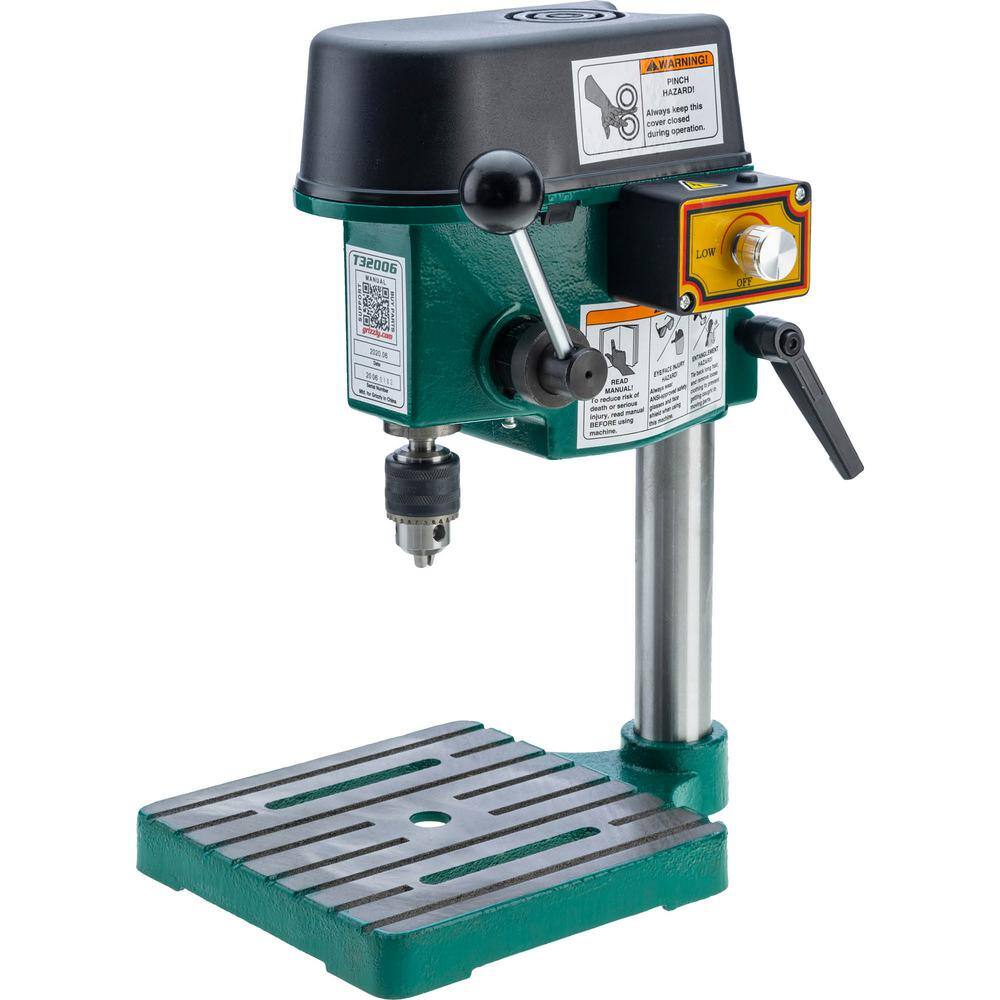

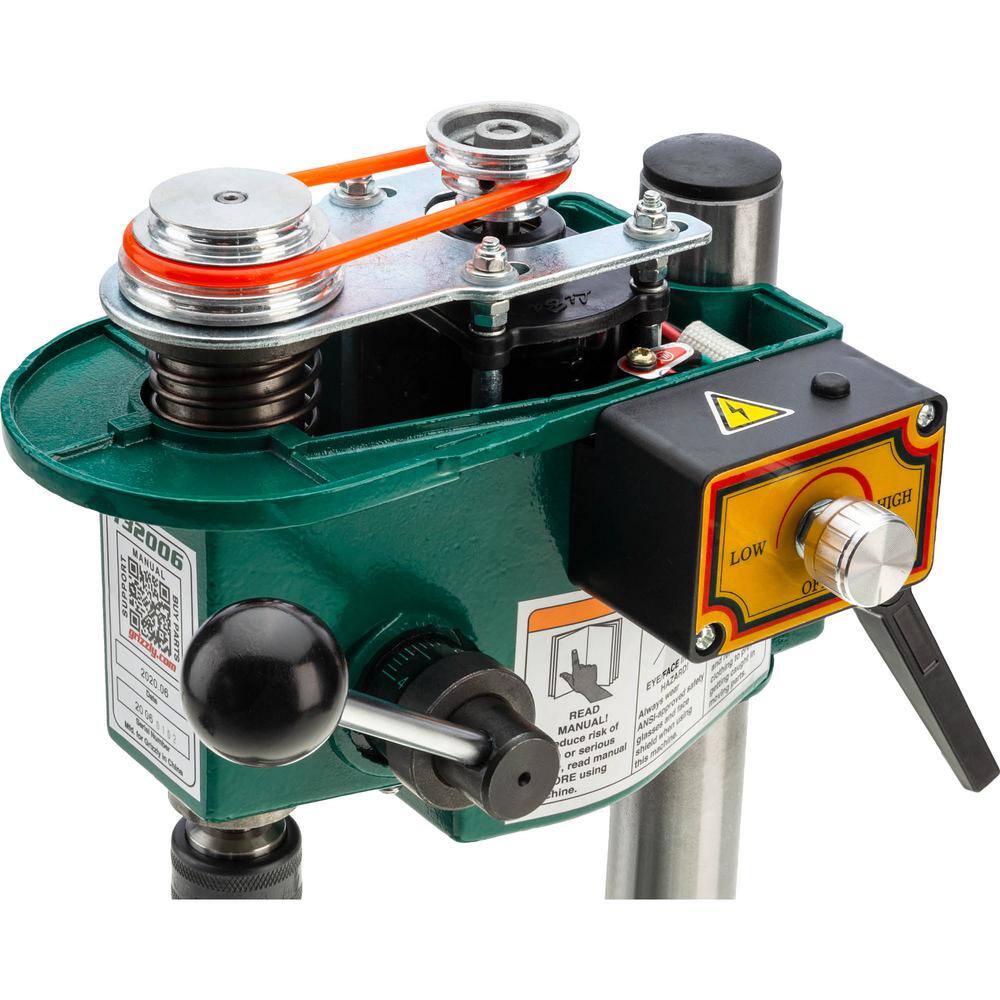

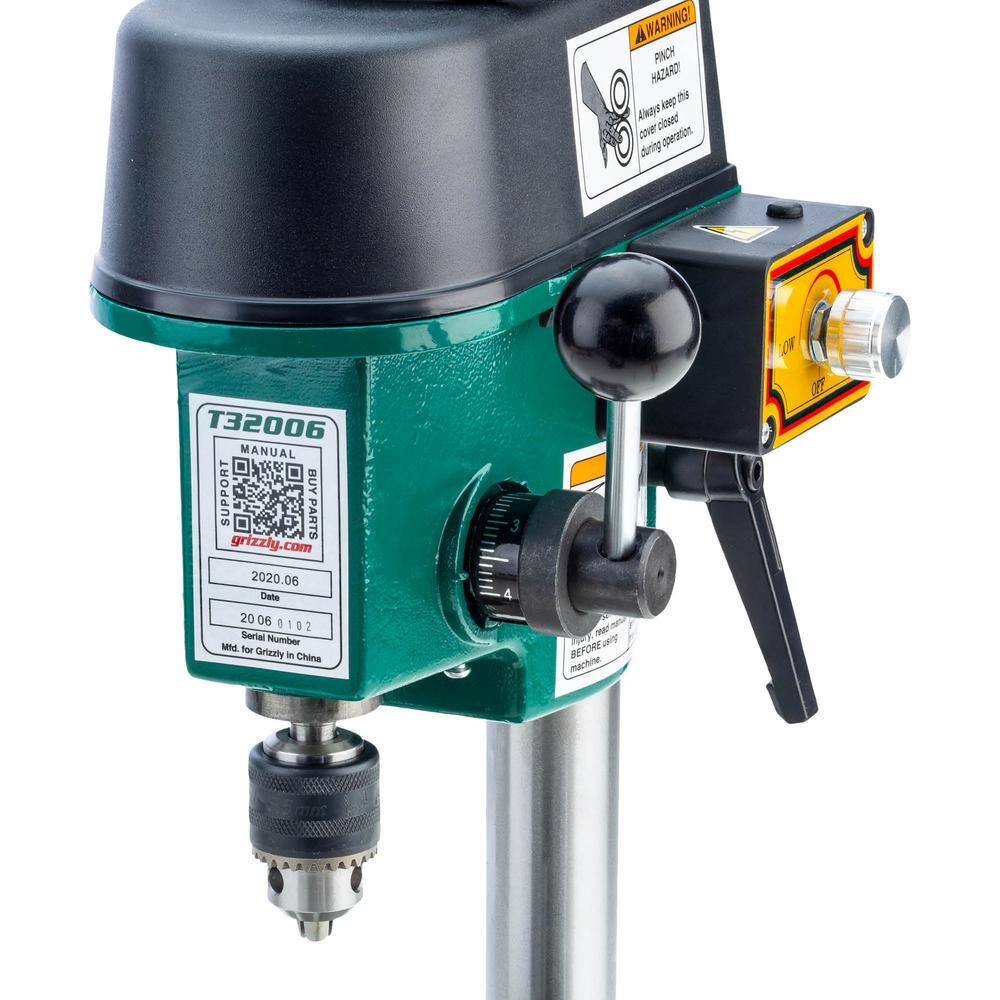

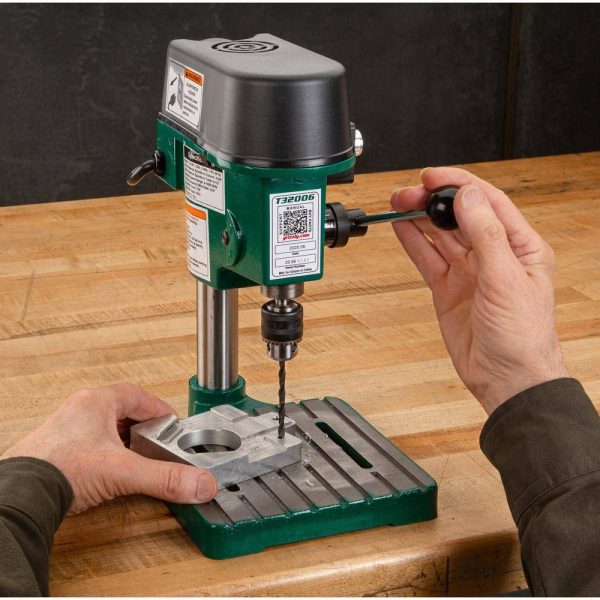

Grizzly Industrial T32006 8-3/4 in. Variable-Speed Mini Benchtop Drill Press with 1/4 in. Chuck Capacity
Better than a hand-held drill for making accurate 90° holes. Whether you are making doll furniture, model train sets, jewelry or custom ammunition, these space-saving machines are just what you need for your delicate work. The 1/8 HP motor powers the variable speed from 0-5000 RPM. The cast iron table is 6-3/4 in. square, 1/8 in. thick and offers 360° of swing. The Variable-Speed Mini Benchtop Drill Press may be small but is definitely not a toy. Perfect for tight spaces. Like all of the Grizzly drill presses, the T32006 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)The T32006 manual was written by our U.S. based Documentation Department is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your drill press. The Grizzly Technical Support team is U.S. based. Parts and accessories for the drill press are available online and shipped from the Grizzly parts warehouse in Springfield, MO.
- Motor: 1/8 HP, 120-Volt, single-phase, 0.95 Amp
- Swing: 8-3/4 in.
- Spindle taper: B10
- Spindle travel: 7/8 in.
- Spindle speed: variable, 0-5000 RPM
- Drill chuck: 1/32 in. -1/4 in., B10
- Drilling capacity: 3/16 in. mild steel
- Maximum distance spindle-to-table: 6-1/2 in.
- Footprint: 7 in. x 9-1/2 in.
- Overall size: 7 in. W x 10 in. D x 15 in. H
- Approximate shipping weight: 12 lbs.
- Includes 2 mm, 2.5 mm and 4 mm hex wrenches
Dimensions
| Chuck Capacity (in.) | 1/4 In. | Product Depth (in.) | 10 in |
|---|---|---|---|
| Product Height (in.) | 15 in | Product Width (in.) | 7 in |
Details
| Amperage (A) | .95 A | Bench & Stationary Tool Type | Drill Press |
|---|---|---|---|
| Color Family | Multi-Colored | Condition | New |
| Cord Length (ft.) | 6 ft | Horsepower (HP) | 0.125 hp |
| Included | Wrench | Maximum Speed (RPM) | 5000 RPM |
| Minimum Speed (rpm) | 0 | Number of Speeds | 50 |
| Portability | Bench | Power Tool Features | Variable Speed |
| Product Weight (lb.) | 11 lb | Returnable | 120 V |
| Spindle Travel (in.) | .875 in | Swing Distance (In.) | 8.75 in |
| Tools Product Type | Other |
