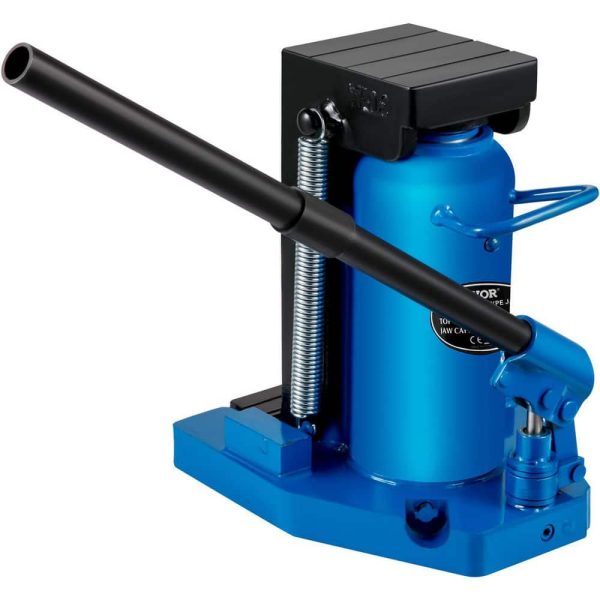

VEVOR YYJZQJD15-30TPETEV0 Hydraulic Toe Jack 15-Ton On Toe Toe Jack Lift 30-Ton On Top Lift Capacity 6-1/5 in. Stork Air Hydraulic Toe Jack
The VEVOR toe jack lift has a powerful lifting capacity, 30-ton on top, 15-ton on the toe. The toe jack is made of heavy-duty steel, rigid and durable. Convenient to control that you can rise or drop it with ease. It will be an excellent jack tool for your automotive repair works and other emergencies.

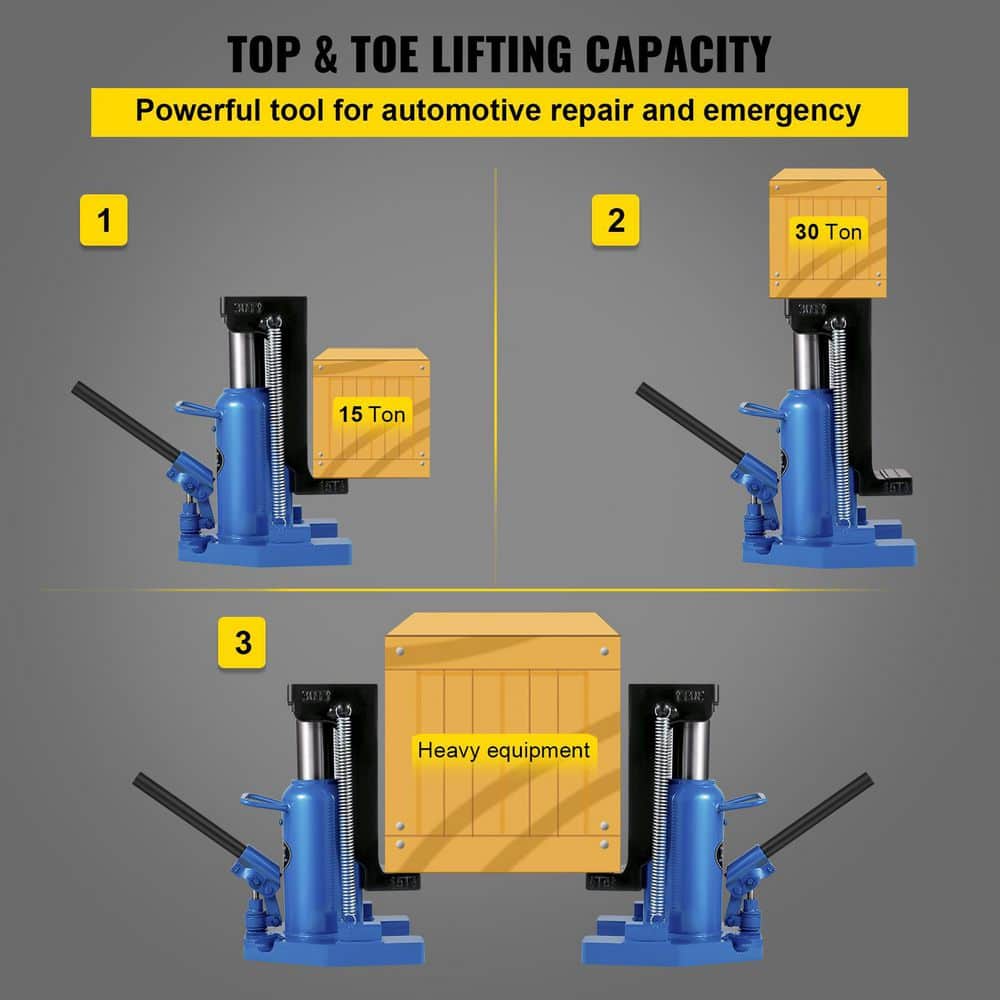

- 15-ton/30-ton loading capacity: top loading capacity: 30-ton/66138 lbs. toe loading capacity: 15-ton/33069 lbs. maximum lifting height: 6.29 in, the hydraulic toe jack is a powerful tool for adjusting the level of weight in shifting engineering, shipbuilding, bridges, civil engineering, steel frame pillars of engineering

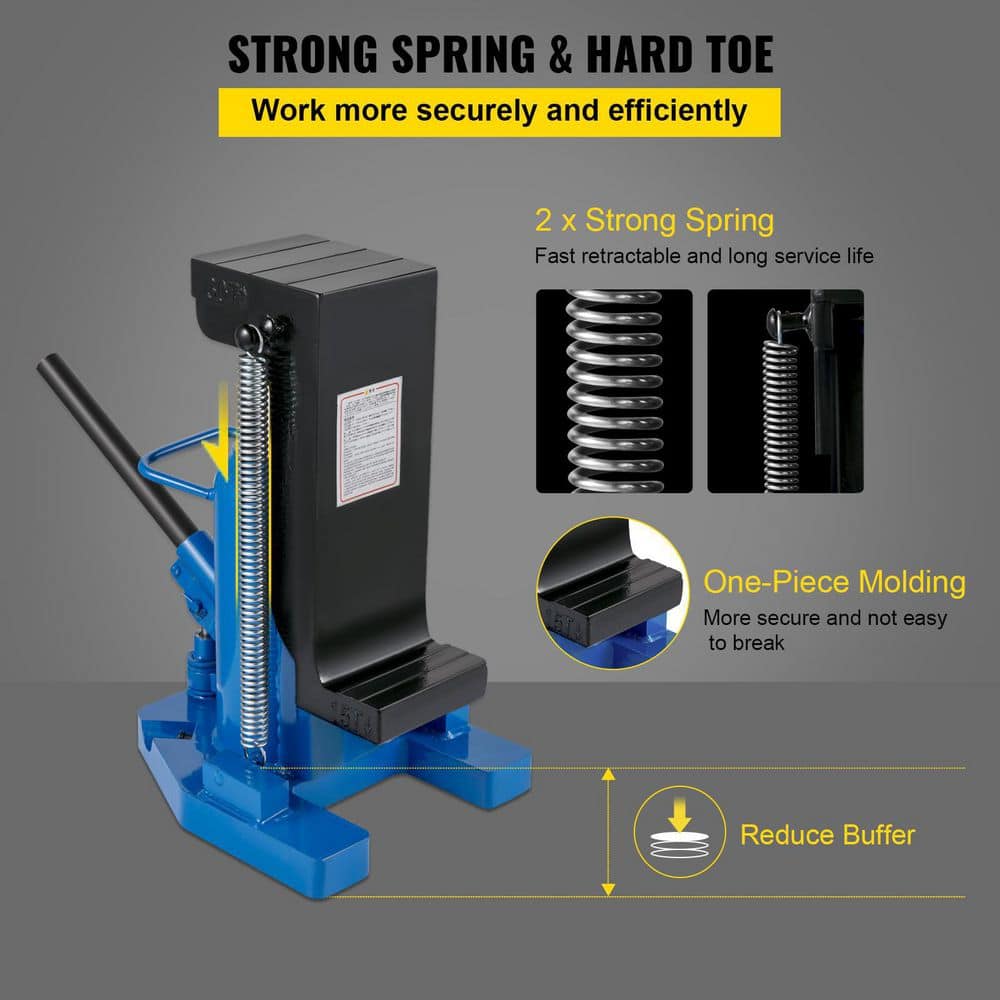

- 1-piece molding toe: the toe jack lift adopts thickened springs, which are strong enough, fast retractable, and can provide long-term use, the top and claw is a 1-piece molding, which is stable and not easy to break, in addition, the piston rod and the inner rod are not in contact, so the friction of the inner bar can be reduced to the least

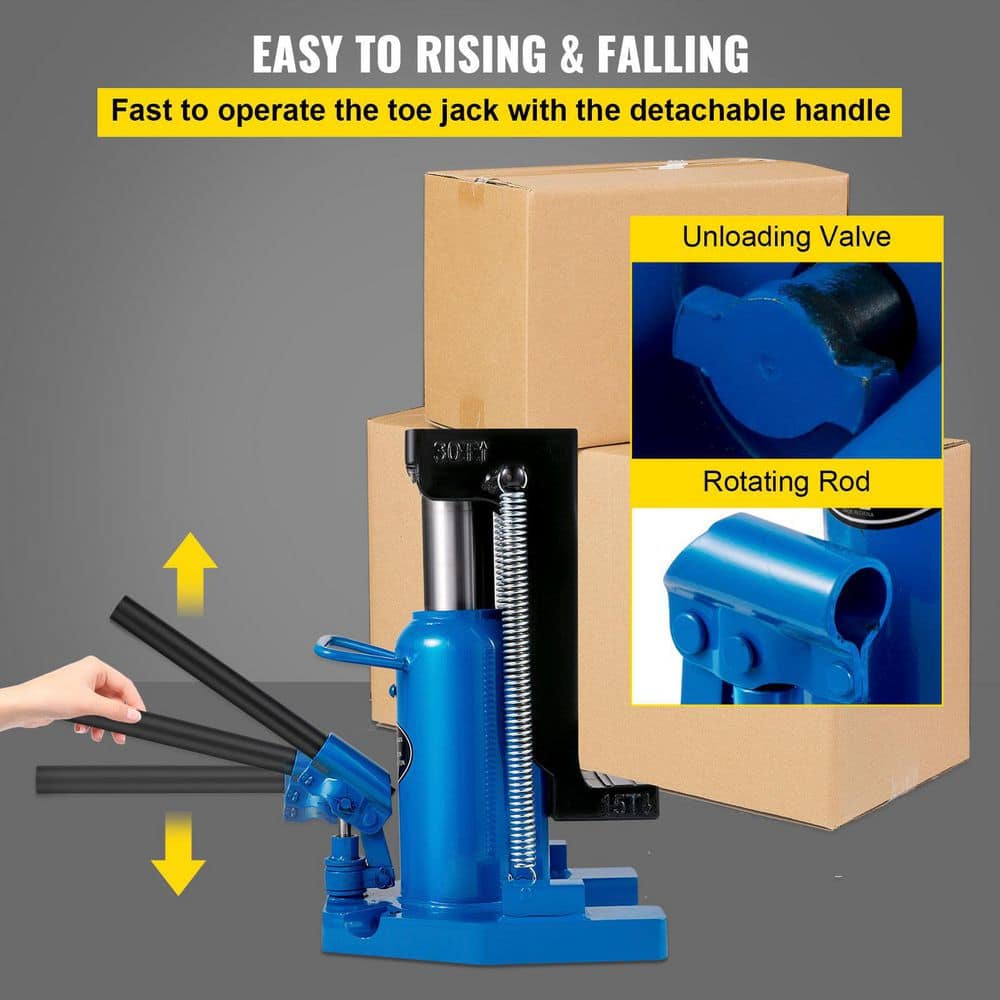

- Effortless to rising and falling: with the detachable handle, it is convenient to operate, rising: clip the handle on the unloading valve, tighten the unloading valve in the clockwise direction, shaking the lever up and down, and the jack goes up, falling: turn the unloading valve slowly in a counterclockwise direction, the jack goes drop

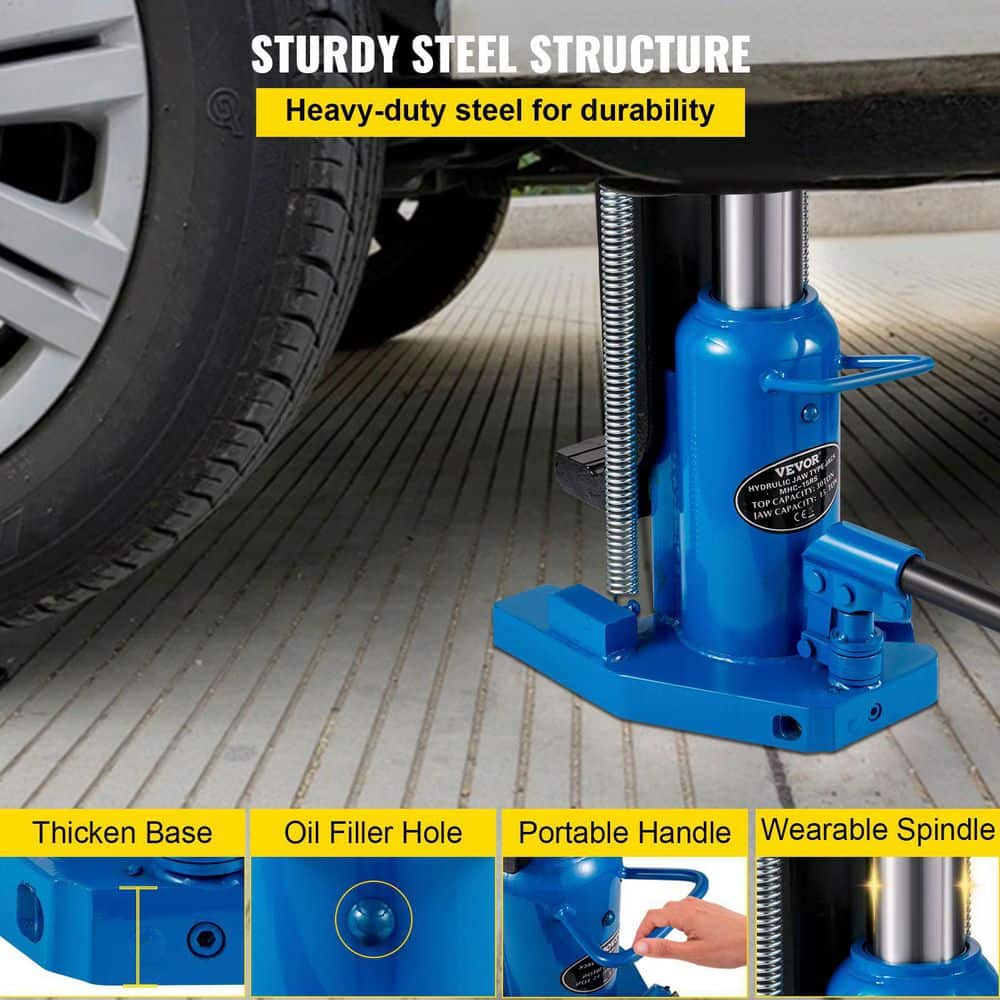

- Sturdy construction: the hydraulic machine toe jack lift is made of heavy-duty steel material, and the high-quality steel is heat-treated for durability, thicken base, large oil filler hole, portable handle, and wearable spindle provide you an excellent toe jack

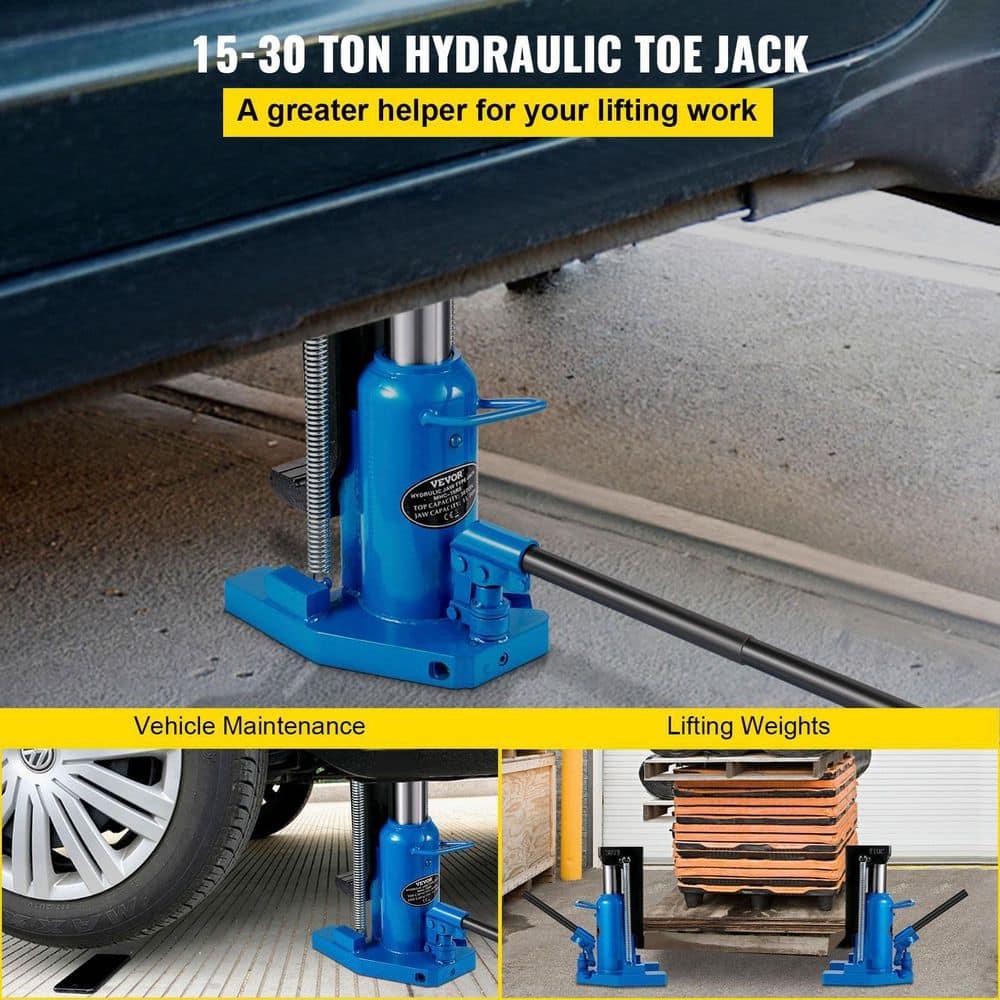

- Various application area: toe jack is widely used in the installation and maintenance of mechanical equipment, bridge construction, railway track, and other aspects, the loading and unloading of large goods in transportation, the repair of automobiles and tractors, etc.
- Specifications: model: MHC-15RS, type: hydraulic machinery toe jack, ram material: welded steel, shell material: proprietary heat-treated steel, toe capacity: 15-ton/33069 lbs., top capacity: 30-ton/66138 lbs., maximum lifting height: 6.29 in., claw lowest position: 30 mm, claw width E: 130 mm, claw length F: 60 mm, weight: 123 lbs.
- Package content: 1 x hydraulic toe jack, 1 x manual

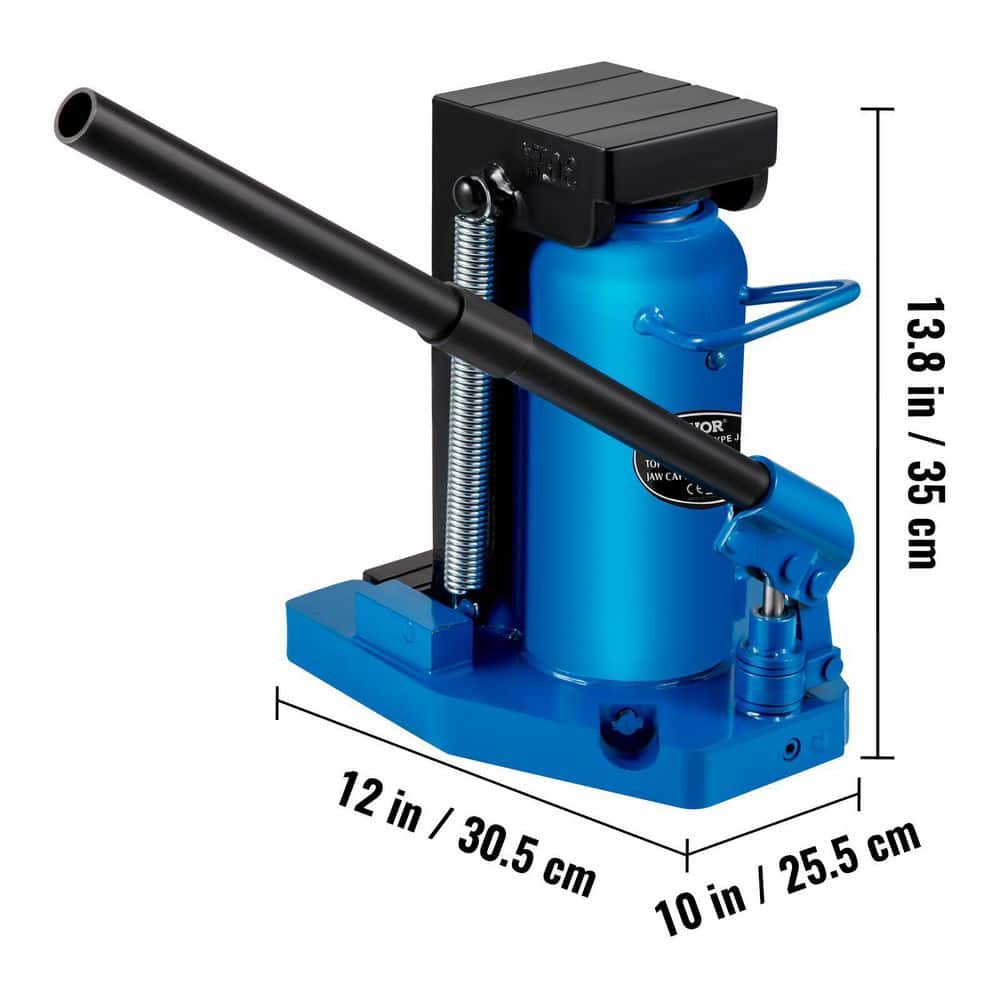

Dimensions
| Collapsed height (in.) | 13.8 | Handle Length (in.) | 15.74 in |
|---|---|---|---|
| Product Depth (in.) | 12 in | Product Height (in.) | 13.8 in |
| Product Width (in.) | 10 in |
Details
| Features | No Additional Features | General Part Type | Floor Jack |
|---|---|---|---|
| Included | Hydraulic Jacks | Material | Steel |
| Maximum Lift Height (in.) | 6.29 in | Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 0 | Product Weight (lb.) | 94.6 lb |
| Saddle Diameter (in.) | 10 | ||
| Weight Capacity (lb.) | 66138 lb |
Warranty / Certifications
| Manufacturer Warranty | 1-Year |
|---|
